The EM Test AutoWave Arbitrary waveform Generator unifies a 4-channel arbitrary generator and a 2-channel transient wave recorder in a small and handy unit. The AutoWave is the best at generating and recording any kind of waveform in the automotive area.

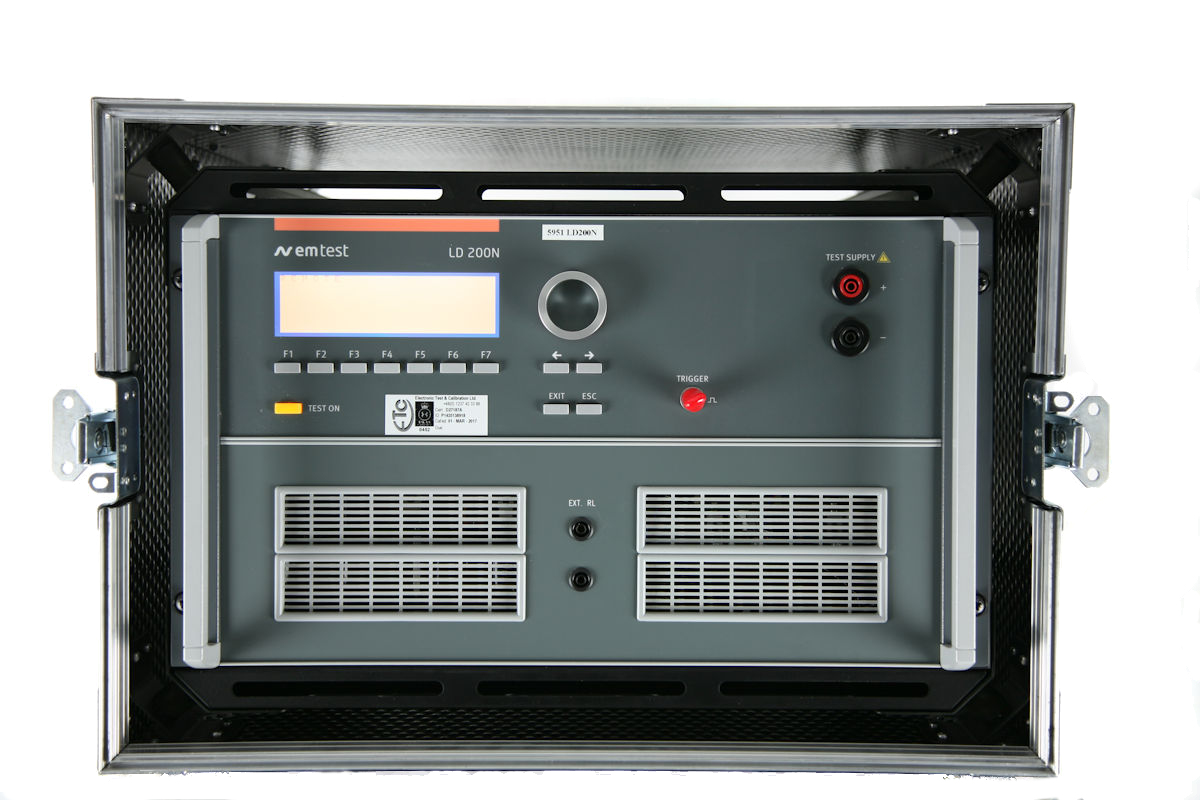

The UCS200N50 (Item 593), VDS200N30 (Item 594), LDN200N (Item 595) and the Autowave(Item 596) are housed in cases which allow the assemble of a 19" rack as seen in the above photos which covers automotive transients including VM and ISO 7637 standards along with Def Stan 61-5 requirements.
The equipment can be either used locally or controlled via a test laptop (Item 597).
Test / Pulses for automotive testing.
|
Standard |
Voltage |
Test / Pulse |
596: Autowave |
593: UCS 200N |
595: LD 200N |
594: VDS 200N |
External Power Supply (No VDS) |
598: Automotive Capacitive Coupling Clamp |
|
ISO 7637-2 |
12V & 24V |
Pulse 1 |
|
Required |
|
Required |
Required |
|
|
Pulse 2a |
|
Required |
|
Required |
Required |
|
||
|
Pulse 2b |
|
|
|
Required |
|
|
||
|
Pulse 3a |
|
Required |
|
Required |
Required |
Required |
||
|
Pulse 3b |
|
Required |
|
Required |
Required |
Required |
||
|
ISO 16750-2 |
12V & 24V |
Overvoltage 24V |
|
|
|
Required |
|
|
|
Overvoltage 18V |
|
|
|
Required |
|
|
||
|
Superimposed Voltage |
Required |
|
|
Required |
Required |
|
||
|
Slow De-Increase |
Required |
|
|
Required |
Required |
|
||
|
Momentary Drop |
|
|
|
Required |
|
|
||
|
Reset Behaviour |
|
|
|
Required |
|
|
||
|
Starting Profile |
|
|
|
Required |
|
|
||
|
Pulse 5a |
|
|
Required |
Required |
Required |
|
||
|
Pulse 5b |
|
|
Required |
Required |
Required |
|
||
|
Reversed Voltage |
|
|
|
Required |
|
|
These are the base standards. Should you require a variation of some of the pulses and or trying to test to a manurfactueres specification the item 596: Autowave might be required. Please contact us should you need to confirm any information.
