On-Site Testing Capabilities
On-site Testing Capabilities
EMC Hire has the skills and experience to assist from project concept through to compliance, and have the in-depth knowledge when taking large and complex systems through to final installation.
How can EMC Hire Support?
- Identification of the correct requirements and the generation of risk assessments and test plans
- Support your engineering team in defining representative / worst-case test modes, fault criteria, monitoring during test and suitable support equipment

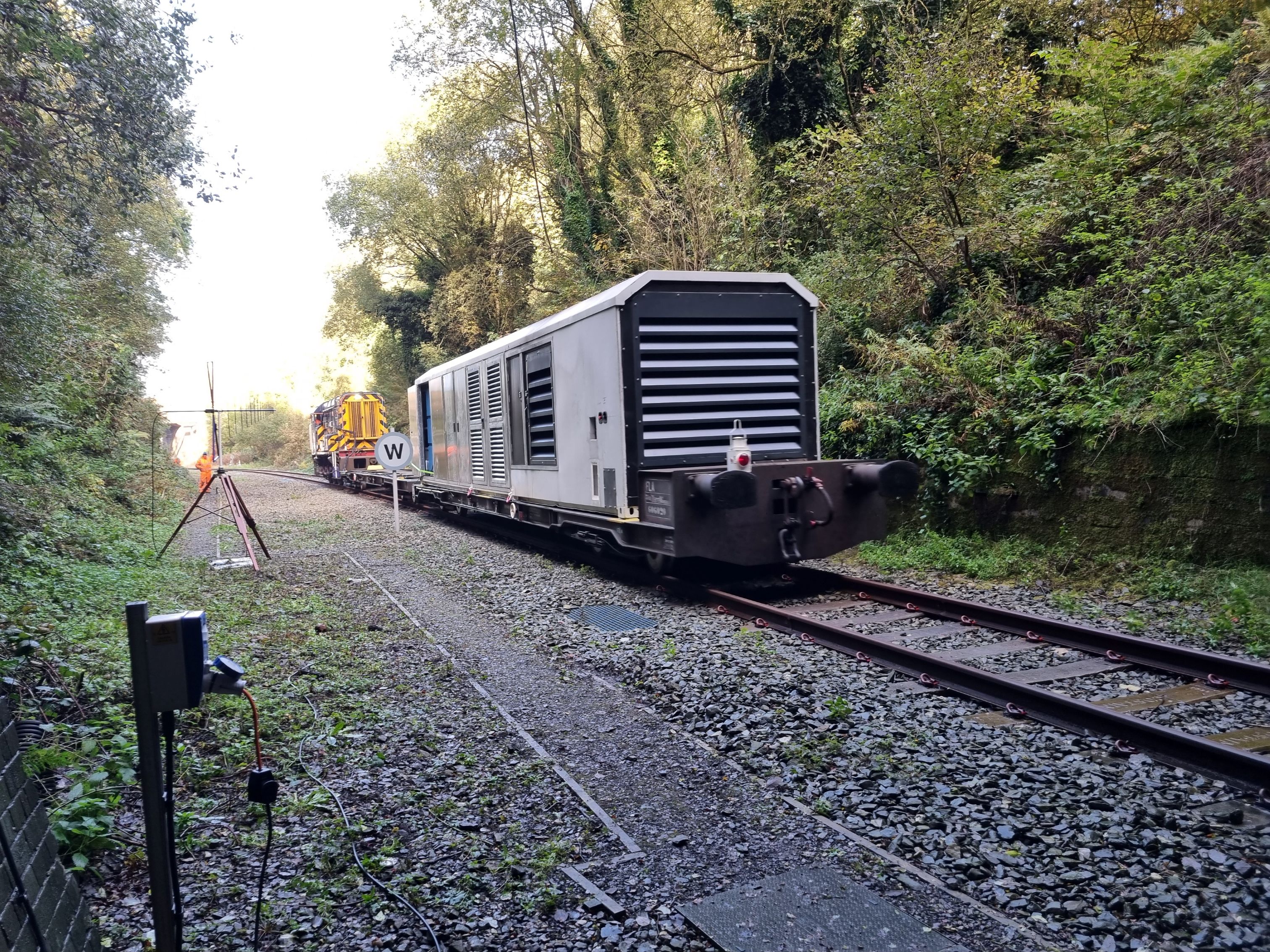

- Performing on-site measurements for both pre-compliance and compliance (CE/UKCA) activities
- EMC Problem resolution and design support
- Technical rationale for deviations to standards and theoretical equipment assessments
- Generation of technical documentation such as test reports, technical files and declaration of conformity
What Tests can be performed On-site?
The table below lists the type of tests which can be performed On-site. The list is not exhaustive; please contact us if you have a test requirement which is not been listed.
| Test Type | Test Standard | Comment |
|---|---|---|
| Commercial Tests To Meet CE / UKCA Requirements | ||
| Conducted Emissions | CISPR 16-2-1 / CISPR 32 | Low Voltage AC Mains, DC Power, Telecom / Network |
| Radiated Emissions | CISPR 16-2-3 | Full System |
| Harmonics and Flicker | EN 61000-3-2/3 | Low Voltage AC Mains |
| Conducted Immunity | EN61000-4-6 | Signal Ports, DC Power Ports, AC Power Ports |
| Magnetic Field Immunity | EN61000-4-8 | Full System |
| ESD | EN61000-4-2 | Full System |
| Transient Immunity | EN61000-4-4 / 4-5 / 4-11 / 4-34 | Signal, DC, AC Power Ports |
| Automotive Tests | ||
| Conducted Emissions | CISPR 25 | DC Power (Voltage & Current Probe) |
| Radiated Emissions | CISPR 25 | - |
| Conducted Immunity | ISO 11452-4 | BCI Method |
| ESD | ISO 10605 | Sub-system tests |
| Transient Immunity | ISO 7637-2 / 16750-2 | Power line transients |
| Defence Tests | ||
| Conducted Emissions | Def Stan / Mil Std / AECTP | Air, Land & Sea |
| Radiated Emissions | Def Stan / Mil Std / AECTP | All Applications |
| Conducted Immunity | Def Stan / Mil Std / AECTP | Sub-system & full system |
| Radiated Immunity | Def Stan / Mil Std / AECTP | Land, Air & Sea |
In addition to the EMC tests listed, EMC can offer On-site measurements to meet the EMF requirements specified by the EMF Directive 2013/35/EU and the Control of Electromagnetic Fields at Work (CEMFAW) Regulation 2016 in the frequency range of DC to 40 GHz
Ready to Book Your On-site Test?
Contact EMC Hires Engineering Team to discuss your on-site testing requirement.
