EMC Test Setup Schematics

EMC Test Setup Schematics

Explore a collection of EMC test setup schematics designed to support a wide range of compliance and pre-compliance testing scenarios. These diagrams provide clear guidance for configuring equipment and achieving accurate, repeatable results.

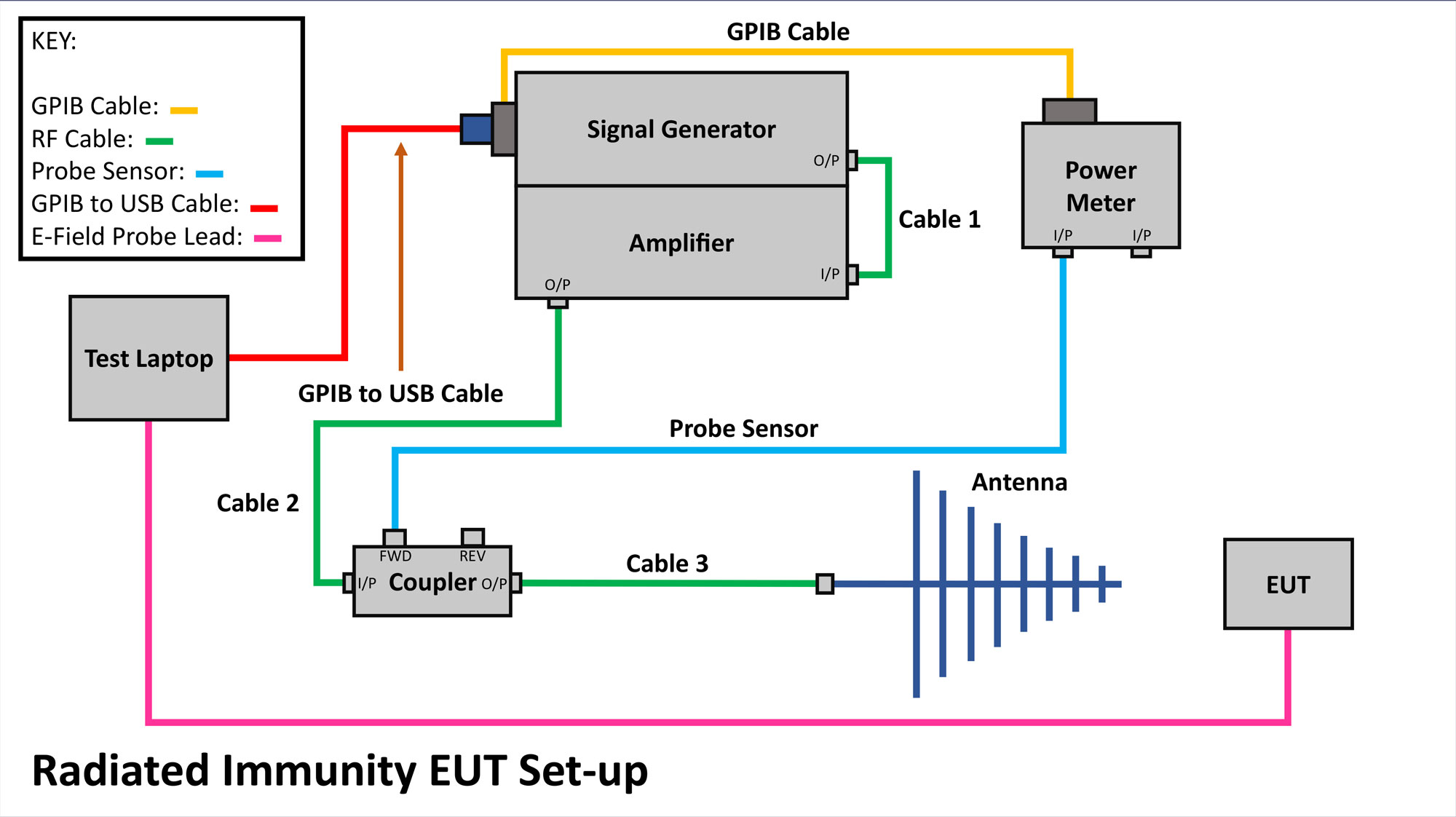

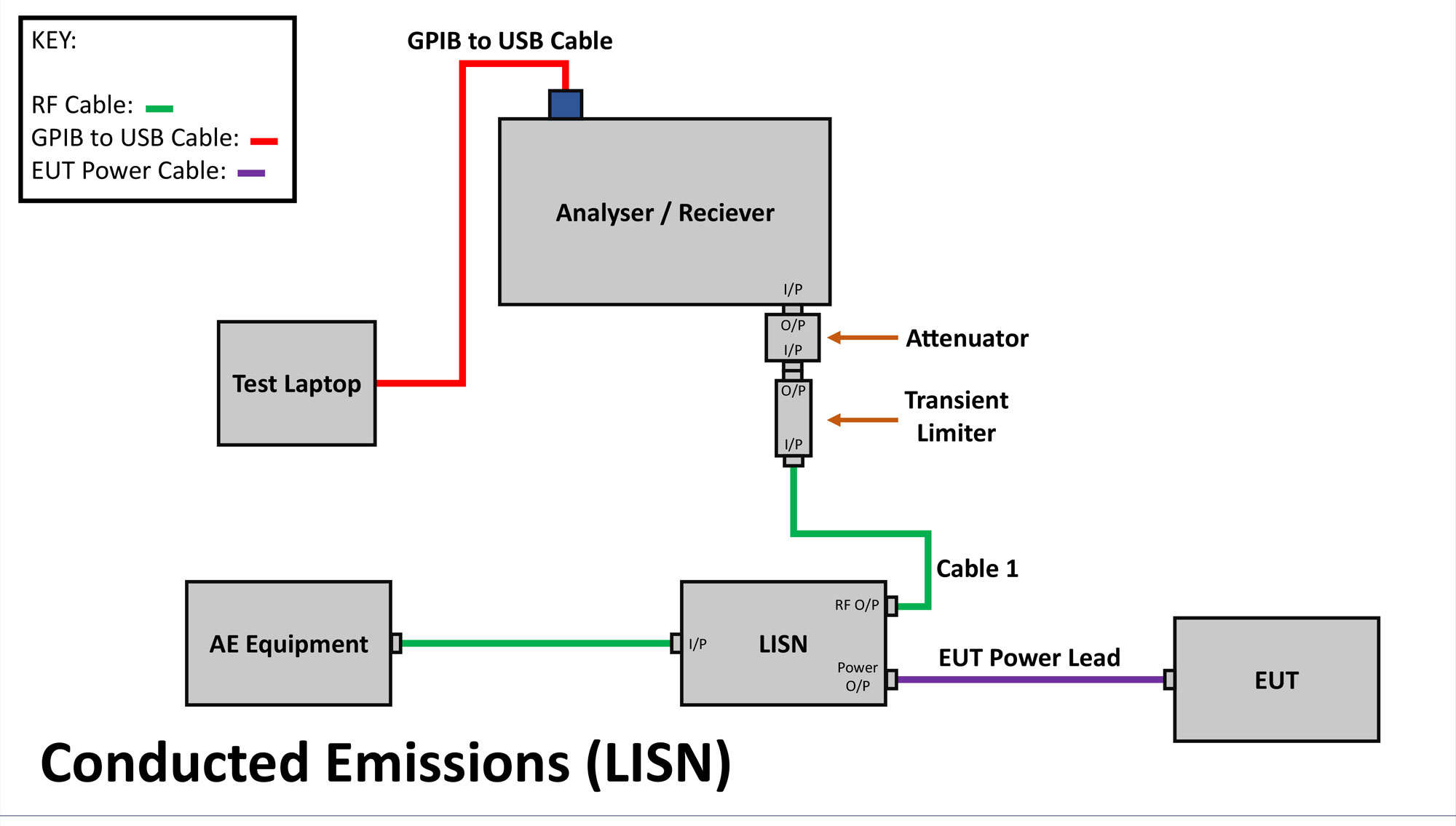

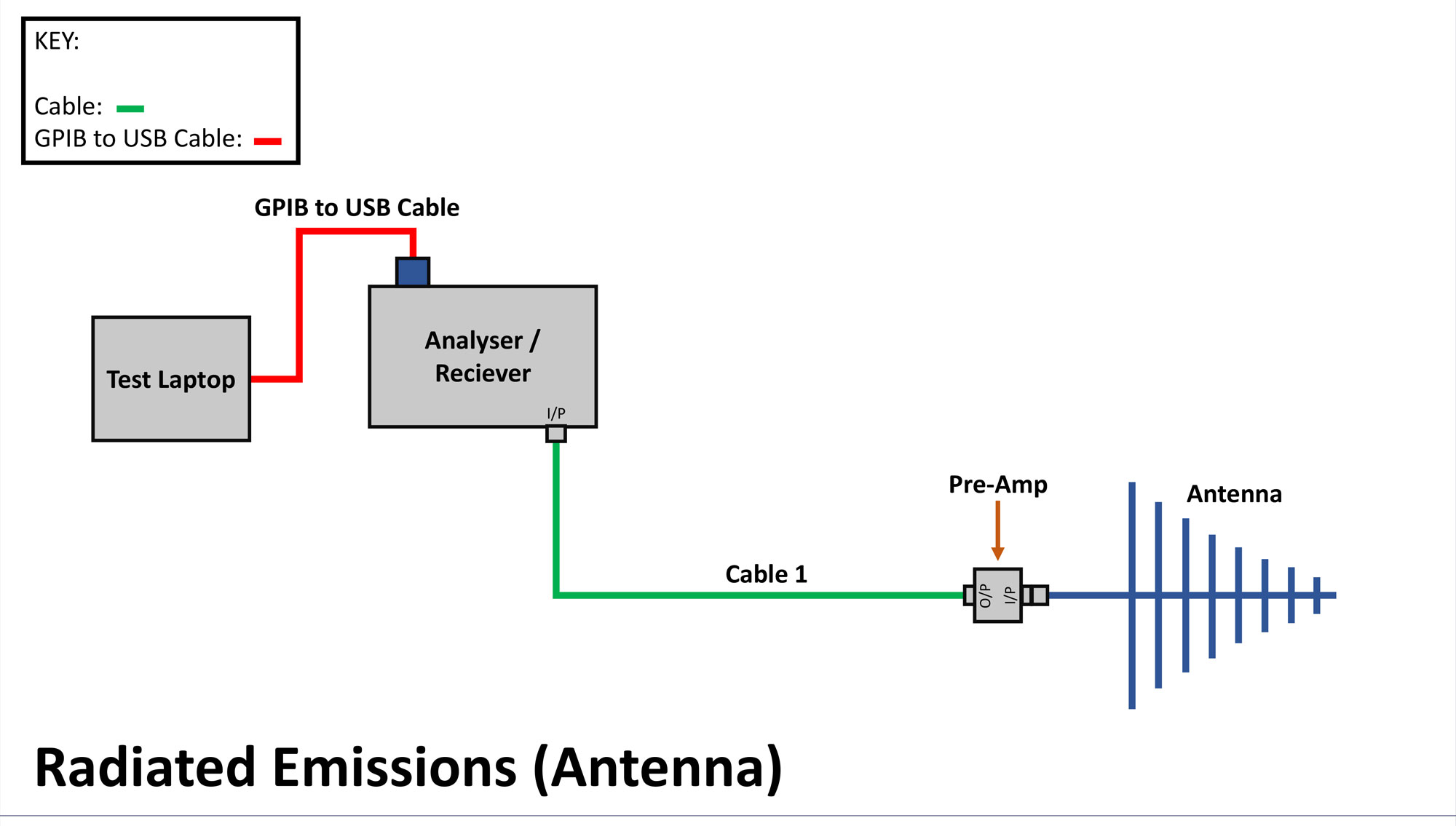

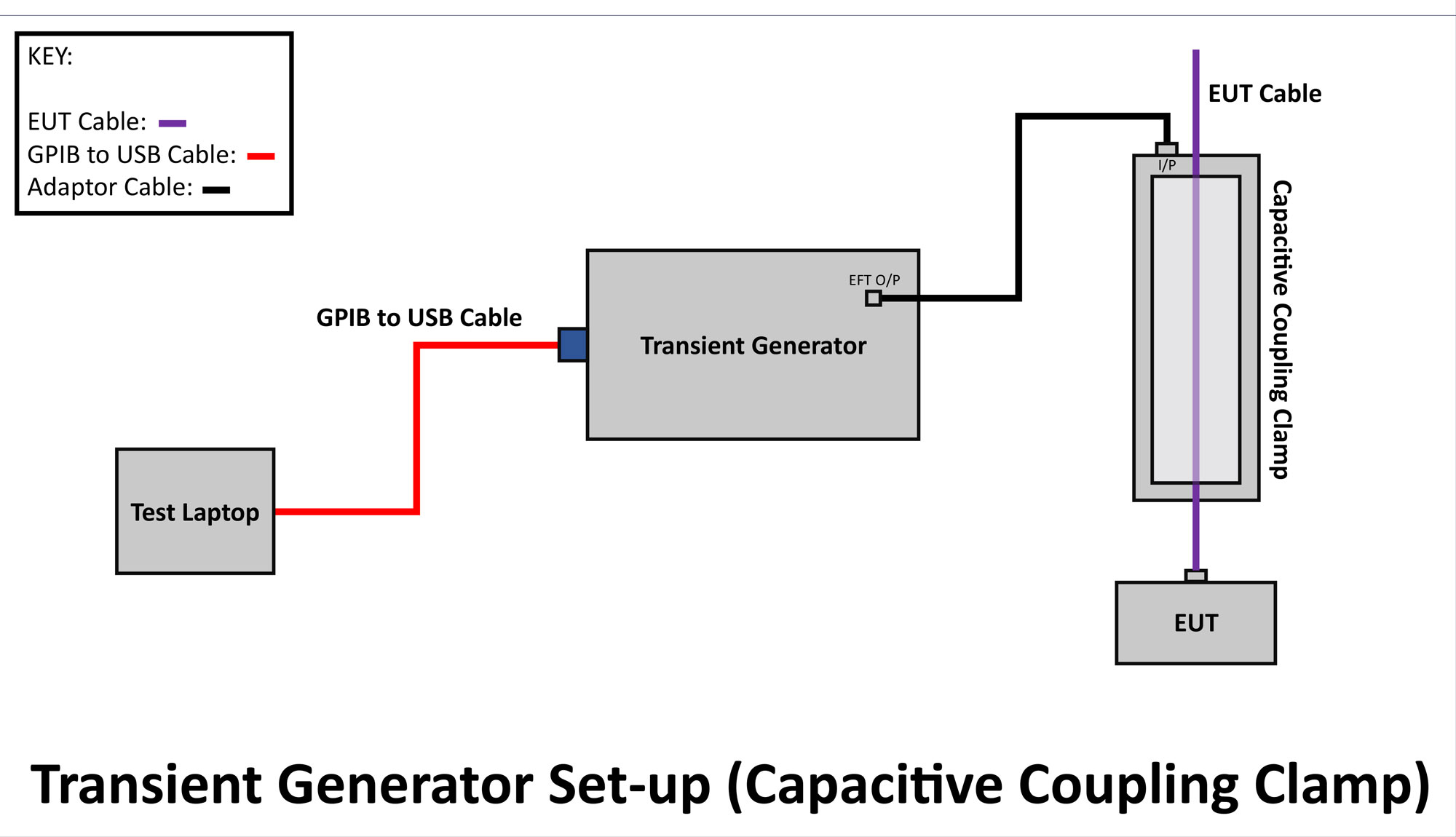

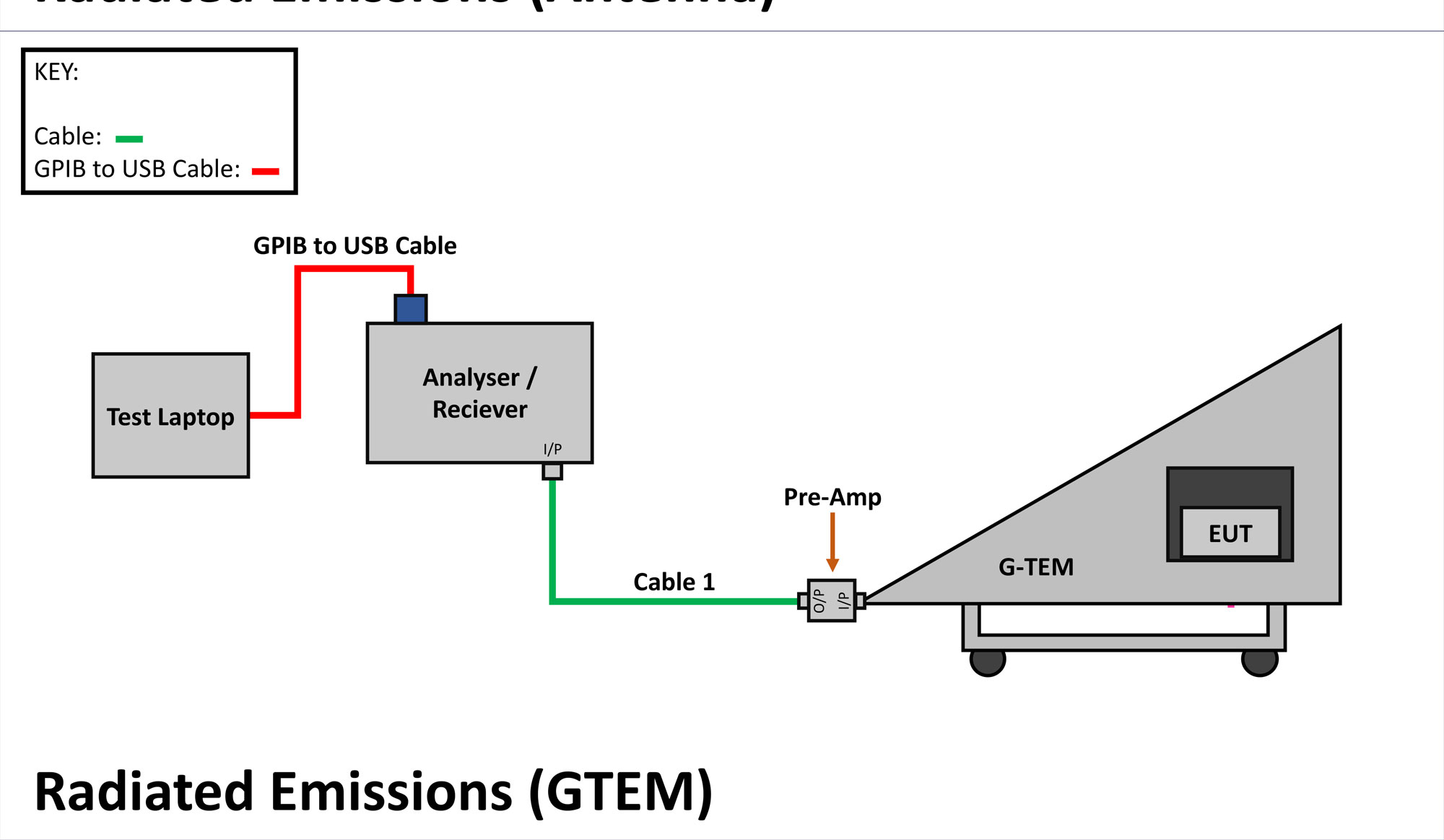

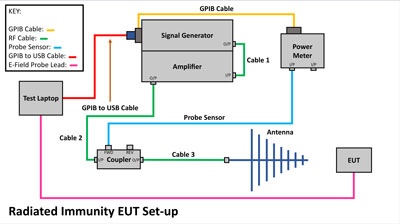

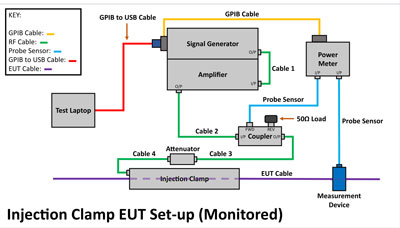

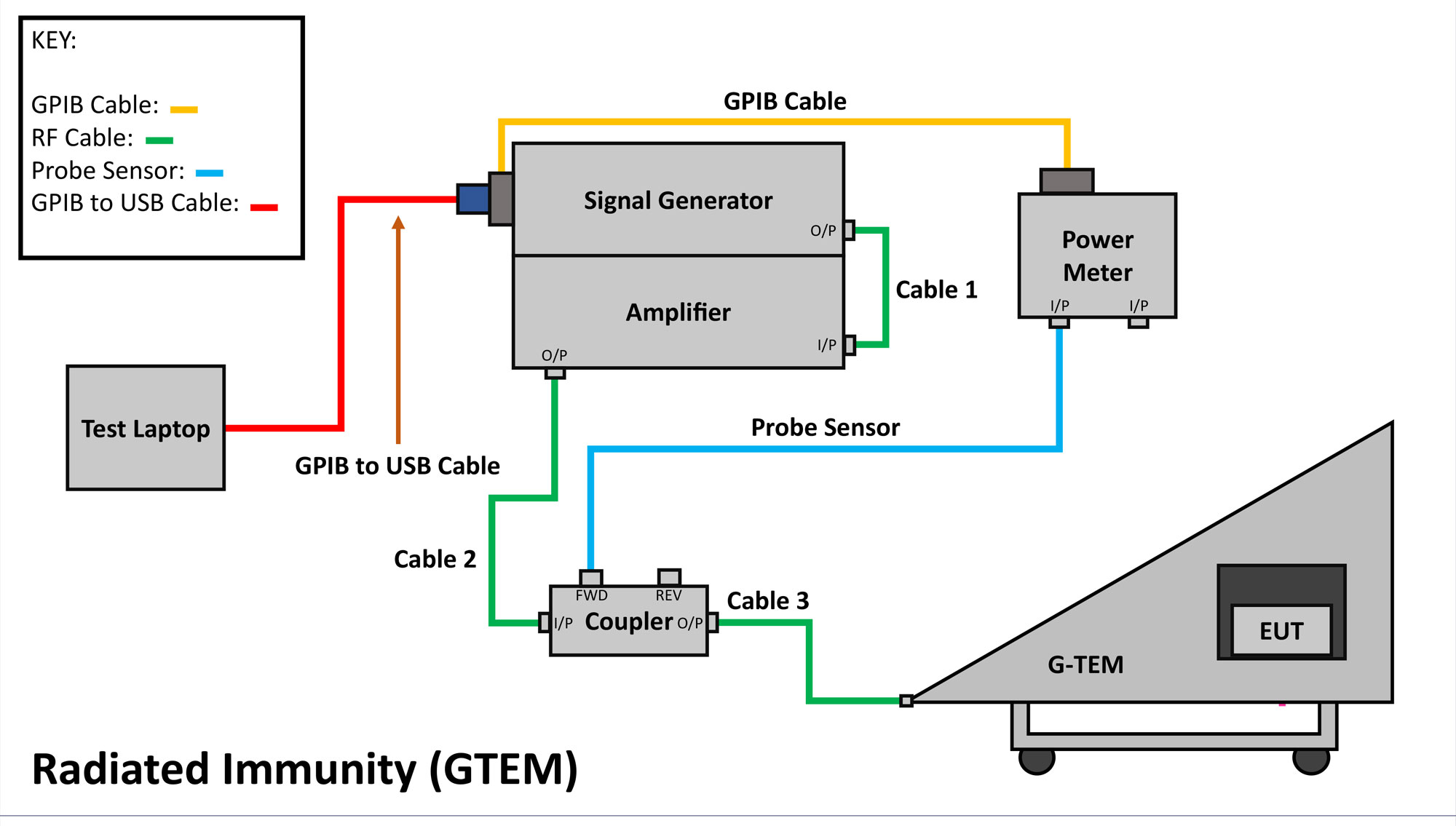

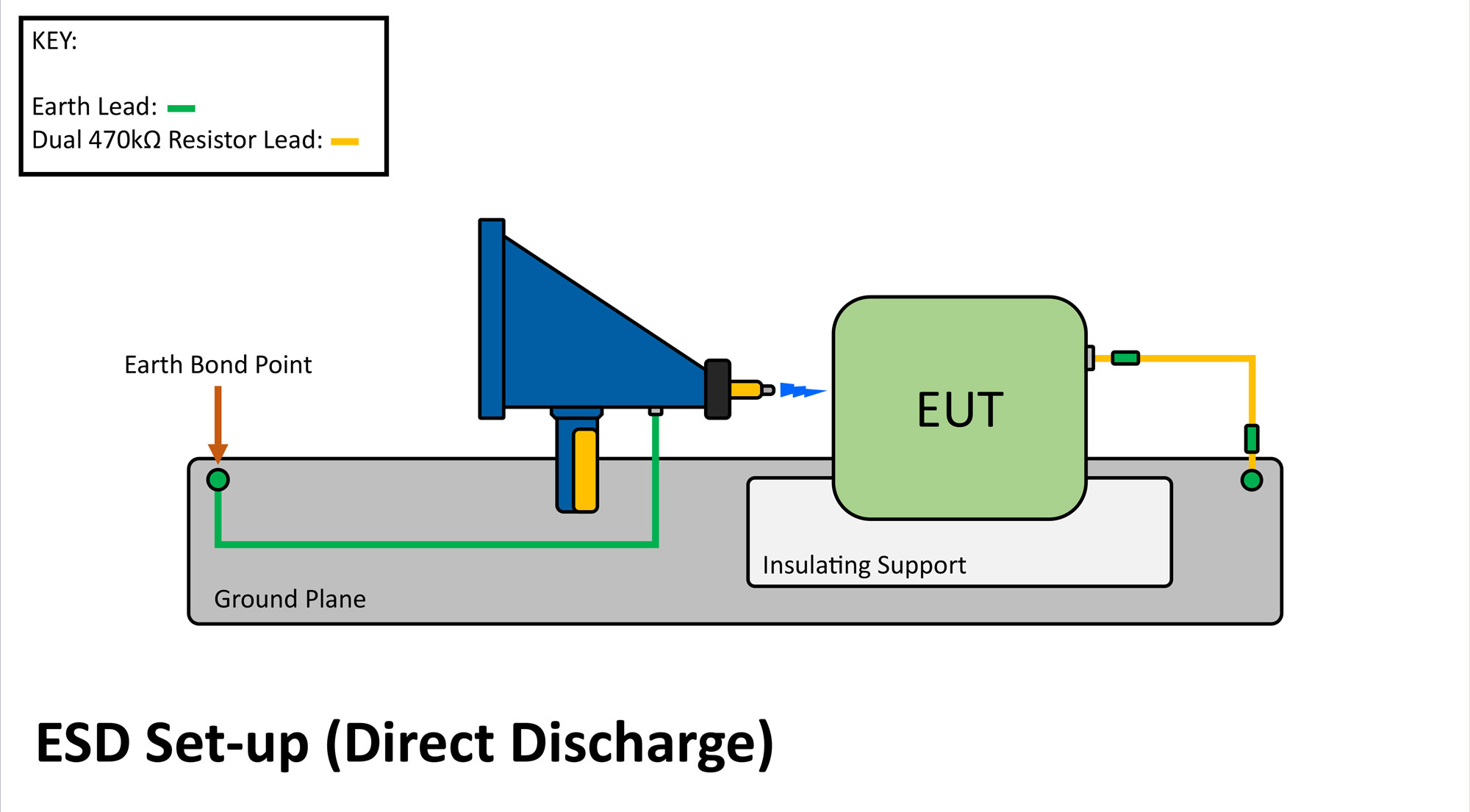

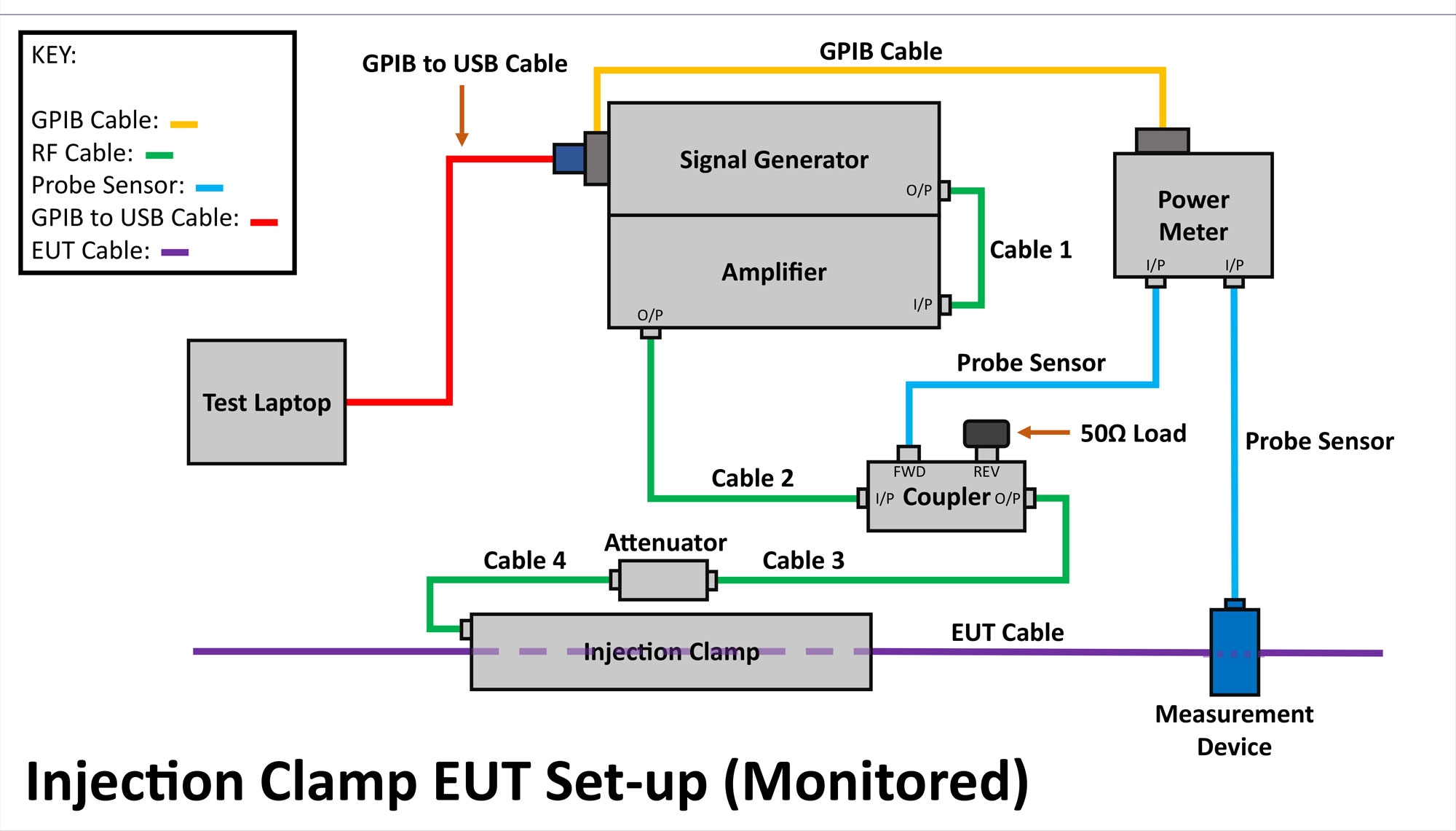

Each schematic has been developed to reflect real-world test configurations used across commercial, automotive and defence standards.
