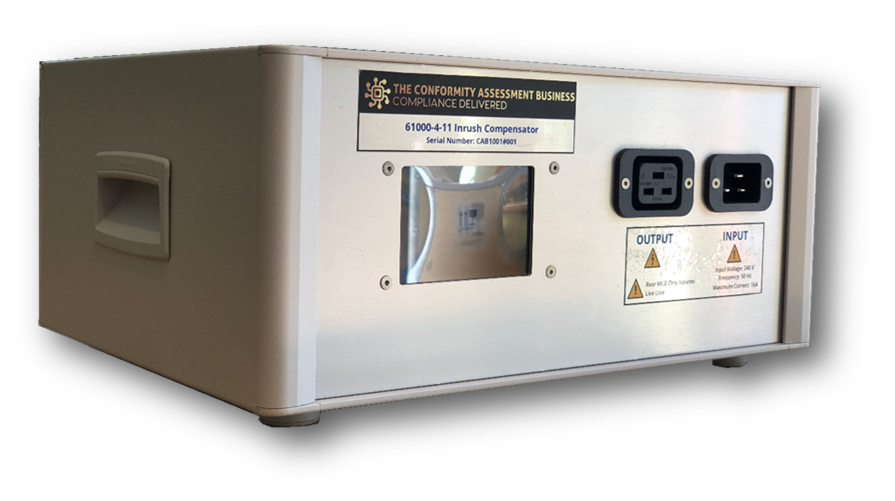

Inrush Compensator CAB1001

The Conformity Assessment Business Model CAB1001 Inrush Compensator enables users to meet the 500A inrush requirement of EN 61000-4-11, irrespective of supply impedance.

This is achieved by switching in Live-Neutral capacitance up to 80 µF in 10 µF steps. The capacitance is introduced using a unique staggered and soft switching method, ensuring that downstream protection devices do not trip due to inrush current.

Control is provided via a simple and intuitive touch screen interface. The CAB1001 also incorporates a dual disconnect system that safely removes any stored capacitance from both input and output within 50 ms of supply disconnection.

You can find out more information about this product by reading the User Manual.

Should you wish to place an order, submit an enquiry request on the Contact Us page, or alternatively you can send an email to sales@emchire.co.uk or call us on +44(0)1462 817111.
