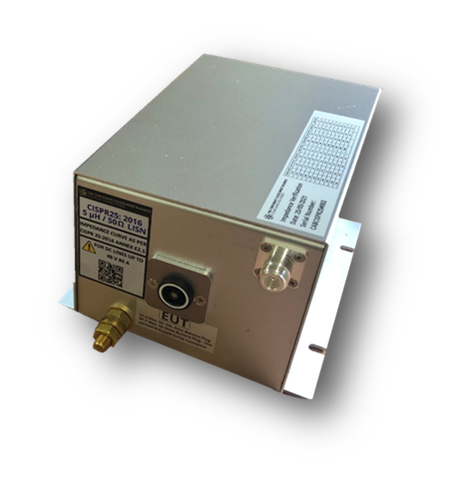

100A 5 µH LISN - CABCISPR25100A

The Conformity Assessment Business 100A LISN/AN has been designed as a cost effective high current 5 µH // 50 Ω LISN / Artificial Network for testing of automotive equipment. The LISNs are extremely robust and have been tested to thermal stability running at 100A continuous current.

The LISN is supplied as either an 80A version using multi-contact connectors, allowing the use of a 4mm banana connection for lower current applications, or a 100A version using 6mm banana connectors. In both cases, the LISN coil is rated to 100A.

All LISNs are supplied with a traceable calibration as standard, with the option to upgrade to an accredited (UKAS) calibration at additional cost.

You can find out more information about this product by reading the User Manual.

Should you wish to place an order, submit an enquiry request on the Contact Us page, or alternatively you can send an email to sales@emchire.co.uk or call us on +44(0)1462 817111.
